Unibezel, a open-source universal wall mounted touchscreen bezel

thumbnail for this post

After moving house, I no longer had my elaborate DIY home-automation setup running. I no longer had my touchscreens in place of lightswitches as detailed here: https://callanbryant.co.uk/post/dshome-2-control-panels/

I wanted to install the touchscreens again, but this time I desired more control over the hardware. Whilst the Fire TV tablets were functional, and the displays were high quality, I didn't like the fact that they were running the rather locked-down FireOS and contained a volatile lithium-i.on battery.

I settled on using an official Raspberry Pi display in combination with a Raspberry Pi 3B as it is the most open, widely supported platform with long-term availability. This is at the expense of screen resolution and viewing angle, mind you.

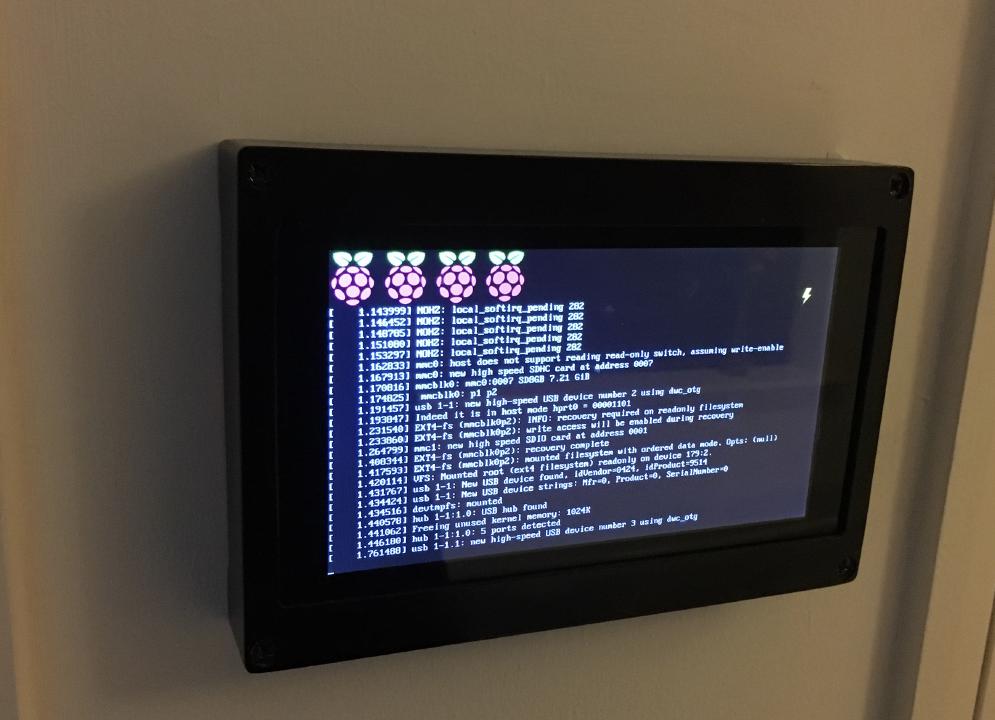

I had a lot of interest in the last design, so I re-wrote the bezel code (in OpenSCAD) as detailed in the last blog post to make it easier to adapt to any display. Here's the result!

As you can see there is an issue with the power supply to the Pi. It only started doing this a month or so after installation. I suspect the PoE adaptor.

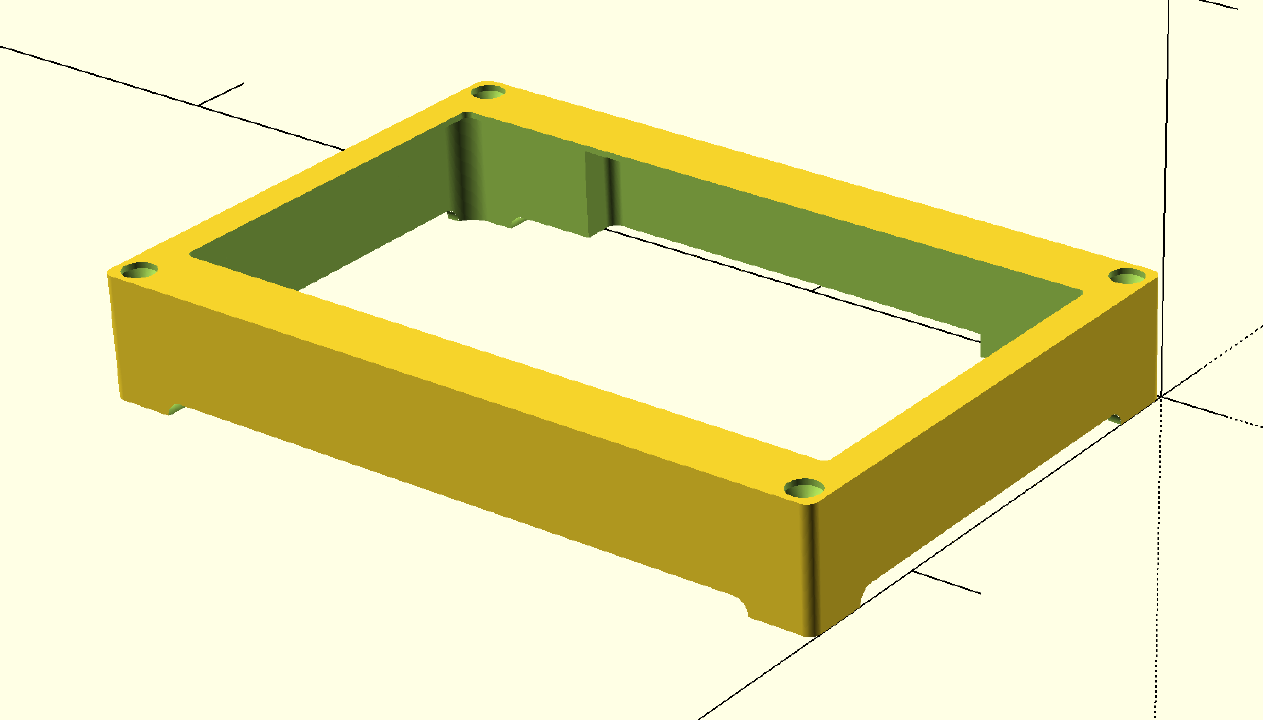

The 3d model in OpenSCAD:

Around the edges I've added automatically-sized vents – they are now adequate to provide sufficient cooling to prevent overheating during the summer for the Pi 3. They also help to make the unit look slimmer.

The screw holes are countersunk to accept standard 4x25mm woodscrews, allowing installation with wallplugs. The recommended mounting method is to press the bezel against the wall, level it, drill 4mm pilot holes directly through the holes, and then ream out the holes in the wall with a 6mm bit before inserting wall plugs.

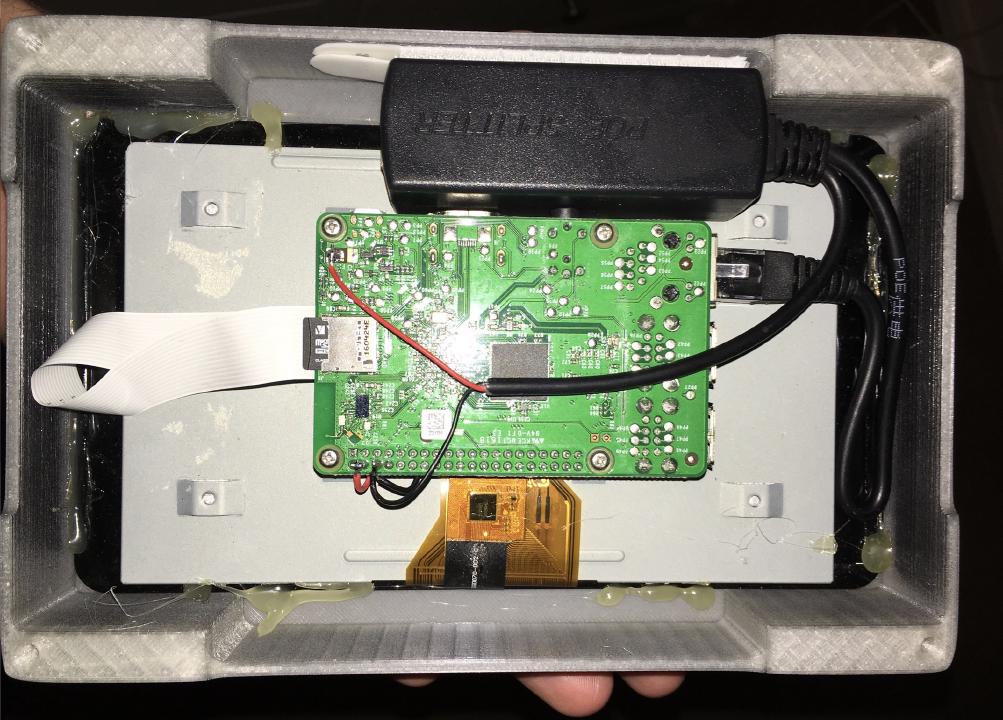

Behind, I've managed to fit the Pi 3 in reverse orientation with a PoE adaptor to power both the display and the Pi:

I've decided to open source this design, complete with the source and a pre-built STL: https://github.com/naggie/unibezel. If you use it, please let me know!
